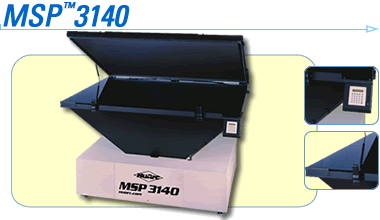

MSP 3140 UV³ë±¤±â(UV Exposure System)´Â
°í¼º´ÉÀ» Ãß±¸ÇÏ´Â UserµéÀÇ ¿ä±¸¿¡ ¸ÂÃç 1200¿ÍÆ®
½Ì±Û Æ÷ÀÎÆ® °í¾Ð¼öÀºµîÀ» »ç¿ëÇÏ¿©
°íÇػ󵵸¦ ¿ä±¸ÇÏ´Â ÀÛ¾÷¿¡ ÀÌ»óÀûÀÎ ³ë±¤±âÀÔ´Ï´Ù.
Áï°¢ Á¡µî¹æ½ÄÀ» Àû¿ëÇØ ¿ö¹Ö¾÷¹× ¾ÆÀ̵鸵 ½Ã°ÀÌ ÇÊ¿ä ¾ø½À´Ï´Ù.
PLC ÄÜÆ®·Ñ·¯¿Í Àû»ê±¤·®°è(light integration system)°¡ ÀåÂøµÇ¾î Á¤¹ÐÇÑ ·¥ÇÁÃâ·ÂÀÇ Á¶Àý¹×º¸»óÀÌ
°¡´ÉÇÕ´Ï´Ù.
MSP-3140Àº LCD Ç¥½Ãâ¹× Ǫ½Ã¹öÆ°Çü ÄÜÆ®·ÑÀÌ ºÎÂøµÇ¾î ÀÖ½À´Ï´Ù.
µå¶óÀÌ º£Å¨ ÆßÇÁ( maintenance-free)´Â ½Å¼ÓÇÑ Áø°ø󸮸¦ °¡´ÉÇÏ°Ô ÇØÁÖ¸ç
NuarcÀÇ µ¶Æ¯ÇÑ manifold systemÀº ºí·©Å¶ÇÁ·¹ÀÓ Æ©ºê»óÀÇ È¦À» ÅëÇØ °ø±â¸¦ ½Å¼ÓÈ÷ »¡¾ÆµéÀÔ´Ï´Ù.
ƯÇãÃâ¿øµÈ Vacuum Release ½Ã½ºÅÛÀº ½Å¼ÓÇÑ release¸¦ °¡´ÉÇÏ°Ô ÇÏ°í
Counterbalanced ºí·©Å¶ ÇÁ·¹ÀÓÀº À¯¾Ð½Ç¸°´õ·Î ÀÛµ¿µÇ¾î ½±°Ô ¿¸³´Ï´Ù.
Flexible and resilient blanket material assures intimate contact and
blanket longevity
Blanket
Blanket frame is counterbalanced with hydraulic cylinders
Design eliminates need for vacuum hose connection to blanket
Exceptionally flexible and resilient material assures intimate contact
and blanket longevity
Control Center
Controller/integrator has 30 programmable memory settings for storage
of exposure & vacuum values
Fully automatic
LCD display
Push button control
Design & Construction
1/4?(6.4 mm) thick optically clear plate glass
1 1/2?(3.8 cm) square welded steel tubular blanket frame
39?(99 cm) working height for no-step access
Ergonomic design
Frame latches made with state-of-the-art material for durability and longevity
Heavy-duty all steel cabinet construction
Electrical Requirements
120v, 1 phase, 15.5 amps, 60 Hz
Exposure Area
31?x 40?(79 x 104 cm) maximum screen frame OD
Accommodates one automatic frame or two standard manual frames comfortably
Compatible with Tri-Loc?Registration System from M&R
Light Source
1200-watt multi-spectrum lamp for fast, efficient exposures
Exposes all emulsions: direct, capillary, and indirect
Instant-start lamp eliminates warmup and idling times, saving energy
Lamp is easy to access and change
Light integrator insures exact exposures
Point light source holds fine lines and dots
Shutter-free operation eliminates mechanical problems
Size
Floor space requirement: 51?x 44?(130 x 112 cm)
Vacuum frame size (ID): 37?x 47?(94 x 119 cm)
Vacuum System
1/4 HP maintenance-free vacuum pump for rapid drawdown
Air is drawn from entire perimeter of vacuum frame
Exclusive patented vacuum releasesystem instantly releases vacuum
Fast, quiet, and efficient
Heavy-duty construction
Oil-free design
Support
24-hour hotline
Training
Access to the M&R/NuArc Training Centers
Warranty
One-year limited warrantyexcluding blanket, glass, and lamps
Electrical Requirements
120v, 1 phase, 15.5 amps, 50 Hz
240v, 1 phase, 7 amps, 50 or 60 Hz
Replacement Lamp
PD41 (multi-spectrum)
Model |
Screen Frame Maximum OD |
Vacuum Frame Size ID |
Overall Size
(HxWxD) |
Electrical Requirements |
Shipping Weight |
MSP 3140 |
31?x 40?br>(79 x 104 cm) |
37?x 47?br>(94 x 119 cm) |
42?x 51?x 44?br>(107 x 130
x 112 cm) |
120v, 1 phase, 15.5 amps, 60 Hz |
325 lbs
(148 kg) |
|
