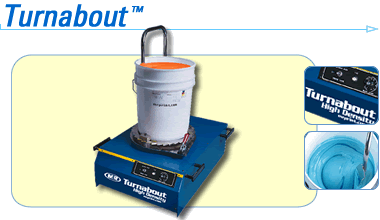

Turn-about 은 스크린 프린트용잉크나 다른 코팅물질을 교반할 때 손쉽게 사용할 수 있습니다.
믹싱용 블래이드가 포함되어 있고 용기를 회전시켜 시료의 상하및 회전운동을 발생시켜
잉크를 균일하게 섞어줄수 있습니다.
Turnabout은 바닥이나 옆면의 잉크까지 균일하게 섞어주며 청소도 간편하여
특히 H.D 모델은 고점성 고밀도 잉크교반에 최적의 교반기입니다.


Capacity
Quickly adjusts to hold 1 to 5 gallon (3.8 to 18.9 liters) containers
Centering
Tool-free self-centering container design
Models
AC: Standard fixed speed
DC: Variable speed
AC H.D. (High Density): Variable speed & constant torque
Rotation
AC Standard and DC models rotate clockwise or counterclockwise
Container is rotated rather than the mixing blade
Service
24-hour hotline
Training
Access to M&R뭩 Training Center
Warranty
Two-year limited

Blades
Additional 1 & 5 gallon (3.8 to 18.9 liters) mixing blades
Electrical
Optional 208/230v, 1 phase, 3 amps, 50/60 Hz on standard AC and DC models


Model Electrical Requirements* Shipping Weight
AC 110v, 1 phase, 5 amps, 60 Hz 150 lbs (68 kg)
DC 110v, 1 phase, 6 amps, 60 Hz 150 lbs (68 kg)
AC H.D. 208/230v, 1 phase, 2.5 amps, 50/60 Hz 150 lbs (68 kg)
*If incoming voltage differs from the voltage(s) listed in this brochure, calculate amperage accordingly
