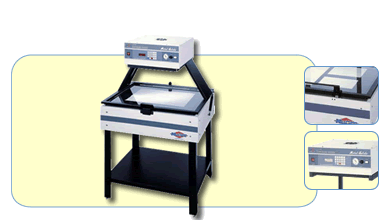

1KS Series´Â NuarcÀÇ 1000w ¸ÞÅ» ÇÒ¶óÀÌµå ³ë±¤ ½Ã½ºÅÛ ÀÔ´Ï´Ù.
¼ÅÅÍ°¡ ÇÊ¿ä¾ø´Â Áï°¢Á¡µî¹æ½ÄÀÇ º£Å¨ÇÁ·¹ÀÓÀÌ ÀåÂøµÈ ¹ÝµµÃ¼ lithographic¿ë ¶Ç´Â Ÿ¿ëµµ·Î »ç¿ëÀÌ
°¡´ÉÇÑ °í¼º´É ³ë±¤±âÀÔ´Ï´Ù.
1KS Series(26-1KS)´Â ½Å¼ÓÇÏ°í ÀÏ°üÀûÀÎ ³ë±¤°ú ÇÁ¸°ÆÃÆÇ, Ä÷¯ ÇÁ·çÇÎµÈ ½Ã·á, ÁÖ±¤¿ë Çʸ§,¶Ç´Â
´Ù¸¥ UV³ë±¤ÀÌ ÇÊ·áÇÑ ½Ã·á»ó¿¡ ¿ì¼öÇÑ À̹ÌÁö Àç»ýÀÌ °¡´ÉÇÕ´Ï´Ù.
ÃÖ´ëÀÛ¾÷ °¡´É »çÀÌÁî´Â 58 x 69 cmÀÔ´Ï´Ù.

26-1KS´Â °íÈ¿À² ÆÄ¿ö¼­ÇöóÀÌ°¡ ÀåÂøµÅ ÀÖ¾î ¿Ïº®Çϸç ÀÛµ¿Çϱ⽱°í Ÿ»çÀÇ
°æÀï °íÃâ·Â ³ë±¤½Ã½ºÅÛÀ» ´É°¡ÇÏ´Â ÆÄ¿ö¿Í ±¤·®À» °¡Á®´Ù ÁÝ´Ï´Ù,

±âº»ÀûÀ¸·Î LEDµð½ºÇ÷¹ÀÌ¿Í 8ä³Î Àû»ê ±¤·®°è(8channel light integrator), °í½Å·Ú¼ºÀÇ °ß°íÇÑ ÆßÇÁ,
ÀÎƼ±×·¹ÀÌƼµå º£Å¨ ½Ã½ºÅÛÀÌ ÀåÂøµÇ¾î ÀÖÀ¸¸ç
¿É¼ÇÀ¸·Î ÇÃ·Î¾î ½ºÅĵå,ÄÚÄÚ¸ð ÇÊÅÍ(KOKOMO Filter),Èñ¼® ½ºÅ©¸°(attenuator screen)µîÀ» ¼±ÅÃÇÒ¼öµµ
ÀÖ½À´Ï´Ù.

Controller/Integrator
Eight-channel light integrator for exposure control
LED readout
Design & Construction
Heavy-duty all-steel cabinet
Molded one-piece blanket
Electrical Requirements*
26-1KS: 110v, 1 phase, 10.3 amps, 60 Hz**
32-1KS: 110v, 1 phase, 12.4 amps, 60 Hz**
40-1KS: 110v, 1 phase, 12.4 amps, 60 Hz**
Light Source
1000-watt multi-spectrum metal-halide lamp
Exposure system saves energy by eliminating warmup and idling times
Instant-start lamp and rapid recovery power supply provide shutterless operation
Size (HxWxD)
26-1KS: 32?x 30?x 28?(81 x 76 x 71 cm)
32-1KS: 34?x 38?x 34?(86 x 97 x 86 cm)
40-1KS: 70?x 48?x 40?(178 x 122 x 102 cm)
Vacuum Frame Sizes
26-1KS: 23?x 27?(58 x 69 cm) vacuum blanket
32-1KS: 28?x 32?(71 x 81 cm) vacuum blanket
40-1KS: 33?x 41.5?(84 x 105 cm) vacuum blanket
suitable for fine line PCBs

Support
24-hour hotline
Training
Access to the M&R/NuArc Training Centers
Warranty
One-year limited warranty excluding glass and lamps

Curtain Assembly NT43
26-1KS only
Electrical Requirements*
26-1KS: 208/230v, 1 phase, 5.9/4.8 amps, 60 Hz
26-1KS: 208/230v, 1 phase, 5.2/4.2 amps, 50 Hz
32-1KS: 208/230v, 1 phase, 7.5/6.0 amps, 60 Hz
32-1KS: 208/230v, 1 phase, 6.7/5.4 amps, 50 Hz
40-1KS: 208/230v, 1 phase, 7.5/6.0 amps, 60 Hz
40-1KS: 208/230v, 1 phase, 6.7/5.4 amps, 50 Hz
Filters
Attenuator screen (LC89)
Kokomo Filter (LC122)
Floor Stand
26-1KS (NFS-3)
32-1KS (NFS-4)
40-1KS (Standard equipment on 40-1KS)
Replacement Lamp
NP80
Vacuum System
Heavy-duty maintenance-free vacuum pump for rapid drawdown available on 26-1KS (LC128)

Model Wattage Usable Area Size (HxWxD)
26-1KS 1000 23" x 27" (58 x 69 cm) 32" x 30" x 28" (81 x 76 x 71 cm)
32-1KS 1000 28" x 32" (71 x 81 cm) 34" x 38" x 34" (86 x 97 x 86 cm)
40-1KS 1000 33" x 41.5" (84 x 105 cm) 70" x 48" x 40" (178 x 122 x 102 cm)

Electrical Requirements* Shipping Weight
110v, 1 phase, 10.3 amps, 60 Hz**
208/230v, 1 phase, 5.9/4.8 amps, 60 Hz***
208/230v, 1 phase, 5.2/4.2 amps, 50 Hz***
150 lbs (68 kg)
110v, 1 phase, 12.4 amps, 60 Hz**
208/230v, 1 phase, 7.5/6.0 amps, 60 Hz***
208/230v, 1 phase, 6.7/5.4 amps, 50 Hz***
250 lbs (113 kg)
110v, 1 phase, 12.4 amps, 60 Hz**
208/230v, 1 phase, 7.5/6.0 amps, 60 Hz***
208/230v, 1 phase, 6.7/5.4 amps, 50 Hz***
300 lbs (136 kg)

* If incoming voltage differs from the voltage(s) listed in this brochure, calculate amperage accordingly
** Requires dedicated 20-amp electrical circuit
*** Optional
