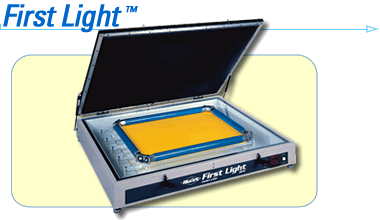

First Light UV노광기는 다목적 데스크탑형 스크린 노광 시스템(screen UV exposure system)입니다.
First Light의 고출력 UV형광램프는 에너지 비용과 시간을 절약해 줍니다.
FL3241은 Tri-Loc(Registration System)과 호환 사용가능합니다,
Vacuum 시스템은 고속진행이 가능하게 디자인 되었으며 안전한 시료장착및 노광을 가능하게 해줍니다.

Warm white fluorescent lamps allow First Light FL3241 to double as a light table.

Blanket
Blanket frame is counterbalanced with hydraulic cylinders
Exceptionally flexible and resilient material assures intimate contact and blanket longevity
Design & Construction
Heavy-duty all steel construction
LED timer with digital readout insures accurate exposure
Electrical Requirements
FL2532: 120v, 1 phase, 7.5 amps, 60 Hz
FL3241: 120v, 1 phase, 6.8 amps, 60 Hz
Exposure Area
FL2532: 23?x 31?(58 x 79 cm) maximum screen frame OD
FL3241: 30?x 40?(76 x 104 cm) maximum screen frame OD (compatible with Tri-Loc?Registration System from M&R)
Light Source
Exposes all emulsions: direct, capillary, and indirect
High-output UV fluorescent lamps
Model FL3241 also functions as a light table
Saves energy costs and production time
Size (H x W x D)
FL2532: 8?x 40?x 32?(20 x 102 x 81 cm)
FL3241: 8?x 49?x 39?(20 x 124 x 99 cm)
Vacuum Pump
Fast, quiet, and efficient
Oil-free design
Support
24-hour hotline
Training
Access to the M&R/NuArc Training Centers
Warranty
One-year limited warranty excluding blanket, glass, and lamps

Electrical Requirements
FL2532: 240v, 1 phase, 4 amps, 50 Hz
FL3241: 240v, 1 phase, 3.2 amps, 50 Hz
Replacement Lamps
UV Fluorescent Lamp Model VE1219

Model Screen Frame Maximum OD Vacuum Frame Size ID Overall Size
(HxWxD)		 Electrical Requirements Shipping Weight
FL2532 23?x 31?br> (58 x 79 cm) 26?x 33?br> (66 x 84 cm) 8?x 40?x 32?br> (20 x 102 x 81 cm) 120v, 1 phase, 7.5 amps, 60 Hz 135 lbs
(61 kg)
FL3241 30?x 40?br> (76 x 102 cm) 33?x 42?br> (84 x 107 cm) 8?x 49?x 39?br> (20 x 124 x 99 cm) 120v, 1 phase, 6.8 amps, 60 Hz 177 lbs
(80 kg)
