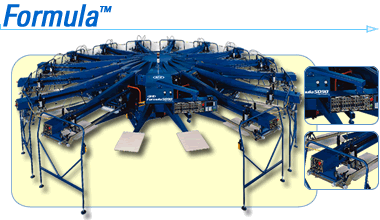

Formula인쇄시스템(Press system)은 섬유 프린팅산업에서
가장 막강한 성능으로 시장을 석권하고 있는 시스템 입니다.
Formula는 밝고 심플한 단색 직물에서부터에서부터 약간
어둡고 복잡한 의류에 이르기까지 최고의 성능을 발휘할수 있습니다.
또한 Formula는 지금까지 출시된 제품 중 가장 견고하고 정교하며 빠른 속도와 높은 생산성을 보증합니다.
완벽히 조정되는 스크린 peel 시스템기능이 있는 AC헤드는 선명하고 샤프한 이미지를 제공할뿐아니라
스크린아래 부분의 잉크 build-up 현상까지 최소화 시켜줍니다.
신뢰할만한 텍스타일 프레스시스템(인쇄기)를 원하는 업체는 누구나 Formula를 선택하게 될 겁니다.
l
또한 Nuarc의 Tri-Loc이나 Double Tri-Loc등 Rapid Registration Systems등과 조합하여
사용하면
프레스위의 registration과 노광 시스템위의 Registration을 정확하게 매치 시킬수 있어 작업자가
훨씬 간단하게 작업할수 있습니다.
Tri-Loc 시스템은 Nuarc의 모든 회전형 수동 또는 자동 텍스타일프레스와 조합되어 사용가능하며
셋업시간을 95%이상 단축할수 있습니다.
Formula 5070은 12, 14, 18 색상의 모델이 있으며 51 x 71 cm의 인쇄 작업범위를 제공합니다.
Formula 5090은 12, 14 색상의 모델이 있으며 51 x 91 cm의 인쇄 작업범위를 제공합니다.
이 두가지 모델은 더블 인덱스를 장착하고 있으며 서보 인덱스 시스템, 독립적인 테스트 프린트/ 시작 프린트/ 프린트 종료의 기능
및 특허인 광학 셔츠 감지지, 스피드 모니터, 트허인 잉크 딥 시스템, 프린트 헤드부분의 4 점 off-contact 조정기능,
인덱스 속도 조절, 공압 스크린 클램프, 양방향 회전, 팔레트 로케이터, 후방 마이크로 레지스트레이션 잠금장치, 압련 및 각도
조절 장치, 조그 레프트 라이트 조절, 단면 및 양면 인쇄 스트로크 기능을 제공합니다.
Carousel/Indexer
Clockwise or counterclockwise rotation
Freewheel capability
Certification
Panel meets Underwriters Laboratories?(UL) standards and carries the UL
label
Color Capacity (Stations/Colors)
Formula 5070: 14/12, 16/14, & 20/18
Formula 5090: 14/12 & 16/14
Control Center
Control panel offers easy navigation, with programming and prompts in
plain language
Digital keypad with alphanumeric display
Digital microprocessor with self-diagnostics
Independent print start/print finish setting automatically activates and
stops print heads at the beginning and end of production runs for operator
convenience
Jog left/jog right controls
Production speed monitor ensures more accurate job costing
Single/Double print stroke capability
Test print setting turns individual print heads on/off during test print
cycle
Design & Construction
Constructed of rigid steel & aluminum and premium components
Pre-registration performed at the factory
Print heads and pallet arms provide the stability necessary for exceptional
print quality
Index System (Servo Drive)
Allows quick adjustment of indexing parameters tailored to various pallet
sizes
Offers single and double-index capability
Sophisticated servo-drive system combines high press speeds with exceptional
smoothness, consistency, and longevity
Ink Dip System
Retrieval system keeps ink in the print area (U.S. Patent No. 5,649,479)
Master Frame
Completely adjustable master frame system
Maximum Image Area
Formula 5070: 20?x 28?(51 x 71 cm)
Formula 5090: 20?x 36?(51 x 91 cm)
Double-index print area: Contact M&R for dimensions
Optic Shirt Detector
Minimizes misprints, facilitates operator training, and allows increased
production speed (U.S. Patent No. 5,383,400)
Pallet System
Three-point pallet leveling system allows easy adjustment
Tool-free pallet locator synchronizes the position of all pallets to speed
up pallet changeover
Tool-free quick release locking system for rapid adjustment, installation,
and removal
Pallets
Solid-aluminum, low-profile, rubber-coated pallets
Peel System
AC heads with fully adjustable screen peel system for consistently sharp
prints and minimal ink buildup
Print Carriage
True close-tolerance linear bearing carriage system for uniform ink deposit
Print Heads
AC variable-frequency drive motors are brushless, maintenance-free, and
offer the ultimate in print control
Four-point off-contact adjustment on all print heads
Independent print button on each head facilitates test printing
Independent print/flood speed controls on each head simplify press setup
and job proofing
Independent reset button on each head enables freewheeling of carousel
during setup
Registration
Enhanced front micro-registration adjustments with visual guides
Locking rear micro-registration provides additional control
Screen Clamps & Holders
Adjustable rear screen holders accommodate a wide range of screen sizes
Clamping system holds roller frames without clamp adapters
Compatible with numerous registration systems, including M&R뭩 Tri-Loc?and
Newman Pin-Lock?
High-Lift mode on front screen holder makes setup fast and mid-run screen
changes easy
Pneumatic screen clamps facilitate rapid screen loading and deliver excellent
stability on a wide variety of screens
Squeegee/Floodbar
Angle and calibrated pressure adjustments are independently set for superior
print quality
Front or rear print carriage stop position allows operator to leave screen
clear or flooded (great for water-based inks)
Independent squeegee & floodbar speed adjustments
Park position allows easier squeegee/floodbar installation and removal
Stroke Length
Calibrated front and rear stroke length with tool-free adjustment maximize
print speed and efficiency, and reduce the working of ink
Service
24-hour hotline
Training
Access to M&R뭩 Training Center
Warranty
Five-year limited
Certification
CE Compliant (Built to specifications established by the European Committee
for Standardization?
Control Center
MPR (Management Production Reporting) Software System?provides press status
and production data in real time, giving facility managers the information
they need to maximize efficiency
Flash Curing
M&R offers a full range of flash cure units
Pallets
M&R offers a wide range of sizes and styles
Squeegee/Floodbar
Pneumatic squeegee/floodbar locks with tool-free angle adjustment
Squeegee air regulator with pressure gauge on each print head delivers
exacting pressure control
Tri-Loc?and Double Tri-Loc?Rapid Registration Systems
Dramatically speed setup
| Model (Stations/Colors) |
Maximum Image Area |
Maximum OD Frame Size |
Standard Pallet Size |
| Formula 5090 14/12 |
20?x 36?br> |
28?x 52?x 2?br>(71 x 132 x 5 cm) | 16?x 22?br>(41 x 56 cm) |
| Formula 5090 16/14 |
20?x 36?br> |
28?x 52?x 2?br>(71 x 132 x 5 cm) | 16?x 22?br>(41 x 56 cm) |
| Formula 5070 14/12 |
20?x 28?br> |
28?x 44?x 2?br>(71 x 112 x 5 cm) | 16?x 22?br>(41 x 56 cm) |
| Formula 5070 16/14 |
20?x 28?br> |
28?x 44?x 2?br>(71 x 112 x 5 cm) | 16?x 22?br>(41 x 56 cm) |
| Formula 5070 20/18 |
20?x 28?br> |
28?x 44?x 2?br>(71 x 112 x 5 cm) | 16?x 22?br>(41 x 56 cm) |
| Diameter | Height | Air @100 PSI | Electrical Requirements* | Shipping Weight |
| 21' 2" (645 cm) |
68" (173 cm) |
13 scfm | 208/230v, 3 phase, 56 amps, 50/60Hz |
12,500 lbs |
| 22' (671 cm) |
68" (173 cm) |
15 scfm | 208/230v, 3 phase, 57 amps, 50/60Hz |
13,000 lbs |
| 20' (610 cm) |
68" (173 cm) |
13 scfm | 208/230v, 3 phase, 56 amps, 50/60Hz |
11,500 lbs |
| 21' (640 cm) |
68" (173 cm) |
15 scfm | 208/230v, 3 phase, 57 amps, 50/60Hz |
13,000 lbs |
| 24' (732 cm) |
68" (173 cm) |
20 scfm | 208/230v, 3 phase, 68 amps, 50/60Hz |
16,000 lbs |
* If incoming voltage differs from the voltage(s)
listed in this brochure, calculate amperage accordingly
* Other electrical configurations are available: Contact
M&R for details
