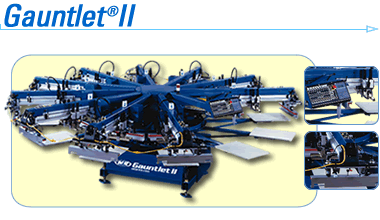

Gauntlet II ÅؽºÅ¸ÀÏ ÇÁ·¹½º´Â Á¤¹ÐÇÑ ¼­º¸·Î µ¿ÀÛÇÏ´Â À妽º ½Ã½ºÅÛÀ» »ç¿ëÇÏ¿© ÃÖ°í¼Óµµ·Î µ¿ÀÛÇÒ¶§µµ
Á¤È®ÇÏ°í ºÎµå·¯¿î ÀÛµ¿À» º¸ÁõÇϸç Ÿ»çÀÇ °æÀïÁ¦Ç°¿¡¼­´Â ã¾Æº¼¼ö ¾ø´Â ¿©·¯°¡Áö ±â´ÉµéÀÌ Ã·°¡µÇ¾î
µ¿±Þ¿¡¼­ ÃÖ°íÀÇ ¼º´ÉÀ» º¸¿©ÁÝ´Ï´Ù.

 Gauntlet II´Â ½Ã°è¹æÇâ ¹× ½Ã°è¹Ý´ë¹æÇâÀ¸·Î µ¿ÀÛÇϸç, Free-wheel Capability,½Ì±Û/´õºí Àε¦½Ì ¹×
ƯÇã±â¼úÀÎ ¸®º¼¹ö ÇÁ¸°Æ® ÇÁ·Î±×·¥- ¹Ì¸® ÇÁ·Î±×·¥ µÈ °¢°¢ÀÇ ÇÁ¸°Æ® Çìµå¸¦ ÀÚµ¿À¸·Î ÀÛµ¿ ½ÃÅ°¸ç
ÇÑ °³ÀÇ Ç÷¡½¬ À¯´ÏÆ®¸¦ »ç¿ëÇÏ¿© ¸ÖƼÇà Ç÷¡½³À» Çϴ±â¼ú-À» Á¦°øÇÕ´Ï´Ù.

Gauntlet II´ÂÇÁ·¹½ºÀÇ Á߽ɿ¡¼­ ¸ðµç ÆÈ·¹Æ®ÀÇ °Å¸®¸¦ ÀÏÄ¡½ÃÅ°´Â  ÆÈ·¹Æ® ·ÎÄÉÀÌÅÍ ½Ã½ºÅÛ ¹×
±¤ÇÐÀû ¼ÅÃ÷ °¨Áö±â,Tool-free, ½Å¼ÓÇÑ Å» ÀåÂøÀ»À§ÇÑ Äü ¸±¸®Áî ÆÈ·¹Æ®µîÀÇ ±â´ÉÀÌ ÀÖ½À´Ï´Ù.

¶ÇÇÑ NuarcÀÇ Tri-LocÀ̳ª Double Tri-Locµî Rapid Registration Systemsµî°ú Á¶ÇÕÇÏ¿© »ç¿ëÇϸé
ÇÁ·¹½ºÀ§ÀÇ registration°ú ³ë±¤ ½Ã½ºÅÛÀ§ÀÇ RegistrationÀ» Á¤È®ÇÏ°Ô ¸ÅÄ¡ ½Ãų¼ö ÀÖ¾î ÀÛ¾÷ÀÚ°¡
ÈξÀ °£´ÜÇÏ°Ô ÀÛ¾÷ÇÒ¼ö ÀÖ½À´Ï´Ù.


Tri-Loc ½Ã½ºÅÛÀº NuarcÀÇ ¸ðµç ȸÀüÇü ¼öµ¿ ¶Ç´Â ÀÚµ¿ ÅؽºÅ¸ÀÏÇÁ·¹½º¿Í Á¶ÇÕµÇ¾î »ç¿ë°¡´ÉÇϸç
¼Â¾÷½Ã°£À» 95%ÀÌ»ó ´ÜÃàÇÒ¼ö ÀÖ½À´Ï´Ù.

°¢°¢ÀÇ ÇÁ¸°Æ®Çìµå´Â 4Æ÷ÀÎÆ®ÀÇ OFF-Contact Á¶Á¤ ±â´É,µ¶¸³Àû ÇÁ¸°Æ®/Ç÷¯µå ½ºÇǵåÁ¦¾î
,ÇÁ¸°Æ®/¸®¼Â¹öÆ° ±â´ÉÀÌ ÀÖ½À´Ï´Ù.

Gauntlet II´Â ¶ÇÇÑ Çâ»óµÈ ±â´ÉÀÇ Àü¸éºÎ ¸¶ÀÌÅ©·Î-RegistrationÁ¶Á¤±â´É,°ø¾Ð ½ºÅ©¸°-Ŭ·¥ÇÁ,
Flip-Up Àü¸é ½ºÅ©¸° Ȧ´õ,±³Á¤°¡´ÉÇÑ ½ºÆ®·ÎÅ© ±æÀÌ Á¶Á¤±â´É,½ºÆ®·ÎÅ© ½ÇÁ¦±æÀÌ Á¶Á¤±â´É,
µ¶¸³Àû ½ºÄûÁö/Ç÷¯µå¹Ù °¢µµ¼³Á¤±â´É,±³Á¤°¡´ÉÇÑ ¾Ð·ÂÁ¶Á¤±â´É,Àü ÈĸéºÎ ÇÁ¸°Æ® ij¸®ÁöÁ¤ÁöÀ§Ä¡ ¼³Á¤
±â´ÉµîÀÌ ÀÖ½À´Ï´Ù.

Gauntlet II´Â 8,10,12 »ö»óÇÁ¸°Æ®°¡ °¡´ÉÇϸç 41 x 51 cmÀÇ ¸éÀûÀ» ÀÛ¾÷ÇÒ¼ö ÀÖÀ¸¸ç
»ö»óÇ¥Çö´É·Â, Ä¿´Ù¶õ ÀÛ¾÷»çÀÌÁî,°í»ý»ê¼º, ÀÛ¾÷ÀÚ ÁöÇâÇü µðÀÚÀÎ ¹× ÄÄÆÑÆ®ÇÑ Á¦Ç°»çÀÌÁî´Â
¾î´À±Ô¸ðÀÇ °øÀå¿¡¼­³ª ÃÖ°íÀÇ ¼±ÅÃÀÌ µÉ °Ì´Ï´Ù.


Carousel/Indexer
Clockwise or counterclockwise rotation
Freewheel capability
Certification
Panel meets Underwriters Laboratories?(UL) standards and carries the UL label
Color Capacity (Stations/Colors)
10/8, 12/10, & 14/12
Control Center
Control panel offers easy navigation, with programming and prompts in plain language
Digital keypad with alphanumeric display
Digital microprocessor with self-diagnostics
Independent print start/print finish setting automatically activates and stops print heads at the beginning and end of production runs for operator convenience
Production speed monitor ensures more accurate job costing
Single/Double print stroke capability
Test print setting turns individual print heads on/off during test print cycle
Design & Construction
Constructed of rigid steel & aluminum and premium components
Pre-registration performed at the factory
Print heads and pallet arms provide the stability necessary for exceptional print quality
Index System (Servo Drive)
Allows quick adjustment of indexing parameters tailored to various pallet sizes
Offers single and double-index capability
Sophisticated servo-drive system combines high press speeds with exceptional smoothness, consistency, and longevity
Maximum Image Area
16?x 20?(41 x 51 cm)
Double-index print area: Contact M&R for dimensions
Optic Shirt Detector
Minimizes misprints, facilitates operator training, and allows increased production speed (U.S. Patent No. 5,383,400)
Pallet System
Three-point pallet leveling system allows easy adjustment
Tool-free pallet locator synchronizes the position of all pallets to speed up pallet changeover
Tool-free quick release locking system for rapid adjustment, installation, and removal
Pallets
Solid-aluminum, low-profile, rubber-coated pallets
Print Carriage
True close-tolerance linear bearing carriage system for uniform ink deposit
Print Heads
Four-point off-contact adjustment on all print heads
Independent print button on each head facilitates test printing
Independent print/flood speed controls on each head simplify press setup and job proofing
Independent reset button on each head enables freewheeling of carousel during setup
Registration
Enhanced front micro-registration adjustments with visual guides
Revolver Print Program?/span>
Automatically operates individual print heads in programmed sequence and allows multiple flashing without losing a printing position (U.S. Patent No. 5,595,113)
Simplifies hard-to-print jobs
Screen Clamps & Holders
Adjustable rear screen holders accommodate a wide variety of screen sizes
Clamping system holds roller frames without clamp adapters
Compatible with numerous registration systems, including M&R’s Tri-Loc?and Newman Pin-Lock?
Flip-up front screen holders make setup fast and mid-run screen changes easy
Pneumatic screen clamps facilitate rapid screen loading and deliver excellent stability on a wide variety of screens
Squeegee/Floodbar
Angle and calibrated pressure adjustments are independently set for superior print quality
Front or rear print carriage stop position allows operator to leave screen clear or flooded (great for water-based inks)
Independent squeegee & floodbar speed adjustments
Stroke Length
Calibrated rear stroke length with tool-free adjustment maximizes print speed and efficiency, and reduces the working of ink
Service
24-hour hotline
Training
Access to M&R’s Training Center
Warranty
Five-year limited



Central Off-Contact
Permits fast, incremental single-lever adjustment of all stations simultaneously
Certification
CE Compliant (Built to specifications established by the European Committee for Standardization?
Control Center
MPR (Management Production Reporting) Software System?provides press status and production data in real time, giving facility managers the information they need to maximize efficiency
Flash Curing
M&R offers a full range of flash cure units
Ink Dip System
Retrieval system keeps ink in the print area (U.S. Patent No. 5,649,479) (Available only with the AC Printhead option)
Pallets
M&R offers a wide range of sizes and styles
Print Heads
AC variable-frequency drive motors are brushless, maintenance-free, and offer the ultimate in print control
Registration
Locking rear micro-registration provides additional control
Screen Clamps & Holders
Side screen clamps
Squeegee/Floodbar
Pneumatic squeegee/floodbar locks with tool-free angle adjustment
Squeegee air regulator with a pressure gauge on each print head delivers exacting pressure control
Stroke Length
Front stroke length adjustment (standard on AC heads)
Tri-Loc?and Double Tri-Loc?Rapid Registration Systems
Dramatically speed setup


Model (Stations/ Colors) Maximum Image Area Maximum OD Frame Size Standard Pallet Size Diameter Height
Gauntlet II 10/8 16" x 20"
(41 x 51 cm)
23" x 36" x 2"
(58 x 91 x 5 cm)
16" x 22"
(41 x 56 cm)
14' 4"
(437 cm)
52"
(132 cm)
Gauntlet II 12/10 16" x 20"
(41 x 51 cm)
23" x 36" x 2"
(58 x 91 x 5 cm)
16" x 22"
(41 x 56 cm)
14' 4"
(437 cm)
52"
(132 cm)
Gauntlet II 14/12 16" x 20"
(41 x 51 cm)
23" x 36" x 2"
(58 x 91 x 5 cm)
16" x 22"
(41 x 56 cm)
15' 8"
(478 cm)
52"
(132 cm)

Pneumatic Heads AC Heads ?/td>
Air@ 100 PSI Electrical Requirements* Air@ 100 PSI Electrical Requirements* Shipping Weight
33 scfm 208/230v, 3 phase,
7 amps, 50/60 Hz
9 scfm 208/230v, 3 phase,
21/20 amps, 50/60 Hz
4500 lbs
(2045 kg)
41 scfm 208/230v, 3 phase,
7 amps, 50/60 Hz
9 scfm 208/230v, 3 phase,
23/23 amps, 50/60 Hz
5000 lbs
(2275 kg)
50 scfm 208/230v, 3 phase,
13 amps, 50/60 Hz
10 scfm 208/230v, 3 phase,
32/32 amps, 50/60 Hz
5700 lbs
(2585 kg)

* If incoming voltage differs from the voltage(s) listed in this brochure, calculate amperage accordingly
* Other electrical configurations available: Contact M&R for details



Screen Works Inc.
Dayton, Ohio
"The Guanlet II, with it's quality construction and affordable price has given us the opportunity to grow at lightning speed. Demanding customers and tight deadlines are no match for the Guanlet II's speed and accuracy. Keeping up with customer needs is our #1 priority, and the M&R Team and their equipment have allowed us to do so."

T. Shirt Factory
Los Angeles, California
"We have owned other brands of small automatic presses in the past, but when it comes to ease of set up and total production output, the Gauntlet is the only press of it's size we'll ever buy. Our actual production output has increased more than 20%. M&R’s service, attention to detail, and after-sale follow-up is first class."

Screened Images Inc.
East Brunswick, New Jersey
"We have been running M&R Formulas and the Gauntlet Series II and have found them to increase our production output over the other machines in our shop. Typical speeds for the M&R's are about 80-90 doz. per hour almost regardless of the amount of colors. Fast set ups and speed should make these presses every owner’s dream."
