exposure systems
exposure lamps
exposure systems



 border=

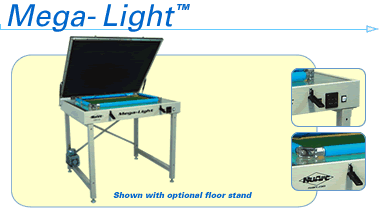

Mega-Light ³ë±¤±â´Â ´Ù¿ëµµÀÇ º¸±ÞÇü ½ºÅ©¸° ³ë±¤ ½Ã½ºÅÛ(screen exposure system)À¸·Î¼­
µ¥½ºÅ©Å¾Çü°ú ½ºÅÄµå ¾ó·Ð ¹æ½ÄÀÌ ÀÖ½À´Ï´Ù.
11°³ÀÇ °íÃâ·Â UVÇü±¤µîÀÌ ÀåÂøµÇ¾î ÀÖ¾î ¿¡³ÊÁö È¿À²¹× »ý»ê¼ºÀÌ ³ô½À´Ï´Ù.
Two additional lamps allow Mega-Light to double as a light table.

¸Þ°¡¶óÀÌÆ®´Â °í¼º´ÉÀÇ Áø°ø ÇÁ·¹ÀÓÀÌ Á¦°øµÇ¾î ½Å¼ÓÇÏ°í È®½ÇÇÑ Çʸ§°ú ½ºÅ©¸°ÀÇ Á¢ÃËÀ» º¸ÀåÇÕ´Ï´Ù.
Mega-Light´Â Tri-Loc( Rapid Registration System) °ú Á¶ÇÕÇؼ­ »ç¿ëÇÏ¸é °í¼ÓÀÇ Á¤È®ÇÑ ³ë±¤°ú
On-Press µî·ÏÀÌ °¡´É ÇÕ´Ï´Ù.

Blanket
Gas shocks simplify blanket frame opening and closing
Exceptionally flexible and resilient material assures intimate contact and blanket longevity
Design & Construction
Functions as a light table
Heavy-duty all-steel cabinet
LED timer with digital readout ensures accurate exposure
Exposure Area
31"x 40"(79 x 104 cm) maximum screen frame size
Compatible with the Tri-Loc?Rapid Registration System from M&R
Light Source
Exposes all emulsions: direct, capillary, and indirect
High-output UV fluorescent lamps: 11 for exposure and 2 for light table use
Saves energy costs and production time
Vacuum System
Heavy-duty maintenance-free vacuum pump for rapid drawdown
Support
24-hour hotline
Training
Access to the M&R/NuArc Training Centers
Warranty
One-year limited warranty excluding blanket, glass, and lamps

Replacement Lamps
UV Fluorescent Lamp Model VE1219
White Fluorescent Inspection Lamp Model VE83
Stand
Heavy-duty Floor stand

Model Maximum Screen
Frame Size
Vacuum Frame
Size
Overall Size
(HxWxD)***
Mega-Light 31"x40"
(78x102 cm)
33"x42"
(84x107 cm)
8"x49"x39"
(20x124x99 cm)
Model Wattage Electrical Requirements* Shipping Weight
Mega-Light 330 110v, 1phase, 7.5 amps, 50/60Hz
208/230v,1phase,4.0 amps, 50/60Hz**
350lbs
(124kg)

* If incoming voltage differs from the voltage(s) listed in this brochure, calculate amperage accordingly. Other voltages are available: Contact NuArc for details
** Optional
*** Height with optional floorstand: 41"(104cm)
