exposure systems
exposure lamps
exposure systems



 border=

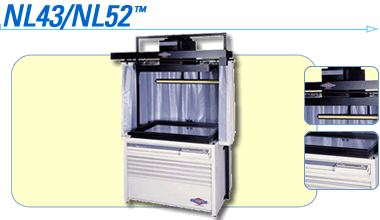

NL43 & NL52 ³ë±¤½Ã½ºÅÛÀº6000W,3000W,1000W¸ÞÅ»ÇÒ¶óÀÌµå °í¾Ð ¼öÀºµîÀ» »ç¿ëÇÕ´Ï´Ù.

NuArcÀÇ Æ¯ÇãÀÎ ÀνºÅÏÆ® º£Å¨½Ã½ºÅÛÀÌ Àû¿ëµÇ¾î ÇÁ·¹ÀÓ´ç 2°³ÀÇ ÆßÇÁ¸¦ »ç¿ëÇϴµ¥ ÇϳªÀÇ ÆßÇÁ´Â
Áø°øÀ» À§ÇÑ °ø±âÈíÀÔ¿ë ÁÖÆßÇÁ·Î »ç¿ëµÇ°í ´Ù¸¥Çϳª´Â ¿Ïº®ÇÑ Á¢ÂøÀ» À§ÇÑ Ãß°¡¾Ð·Â¿ëÀ¸·Î
»ç¿ëµË´Ï´Ù.

¼öµ¿Çü Ä¿Æ°, ÀÚµ¿ ±Û·¡½ºÇÁ·¹ÀÓ ¿ÀÇÁ³Ê,ÃæºÐÇÑ Å©±âÀÇ µå·Î¿ö °ø°£,±×¸®°í 122cmÀÇ ±æÀÌÀÇ YELLOW
ÀνºÆåÅÍ¿ë µîÀÌ ÀåÂøµÇ¾î ÀÖ½À´Ï´Ù.

EZ-Plus 30ä³ÎÀÇ Àû»ê±¤·®ÄÜÆ®·Ñ·¯´Â ³ë±¤°­µµ¹× ½Ã°£,Áø°ø½Ã°£,ÇÊÅÍÀÇ ÀÛµ¿(¼³Ä¡µÇ¾î ÀÖÀ» °æ¿ì)
Æ÷Å伿ÀÇ ¼±ÅõîÀ» Á¦¾îÇØ ¿øÇÏ´Â ³ë±¤À» Á¤È®ÇÏ°Ô Á¦¾îÇÏ°Ô ÇØÁÝ´Ï´Ù.

NuArcÀÇ »õ·Î°³¹ßµÈ ºñ·Ê¿ÂµµÄÜÆ®·Ñ½Ã½ºÅÛ( Proportional Temperature Control-PTC)Àº
ȹ±âÀûÀ¸·Î ¿¡³ÊÁö ¼Ò¸ð ¹× ¿­¹ß»êÀ» °¨¼Ò½ÃÄÑÁÖ¸ç Àû´çÇÑ ·¥ÇÁ¿Âµµ À¯Áö.°íÈ¿À²ÀÇ ·¥ÇÁÃâ·ÂµîÀ»
°¡´ÉÇÏ°Ô ÇØÁÝ´Ï´Ù.

¿É¼ÇÇ°¸ñÀÎ phenomenal SmartONE ÄÄÇ»ÅÍÁ¦¾î ½Ã½ºÅÛÀº ¸ðµçÀÛµ¿ÀÇ ÀÚµ¿È­ ¹× »ç¿ëÀÚ¿¡ ÀûÇÕÇÏ°Ô ¼³Á¤ÇÏ´Â°É °¡´ÉÇÏ°Ô ÇØÁÝ´Ï´Ù.

¶Ç´Ù¸¥ ¿É¼ÇÀ¸·Î´Â ¿ÀÅä¸Åƽ Ä¿Æ°½Ã½ºÅÛ,¿ÀÅä¸Åƽ µðÇ»Àü,¿ÀÅä¸Åƽ kOkOMO /Ŭ¸®¾î¸µ ÇÊÅ͵îÀ»
¼±ÅÃÇÒ¼ö ÀÖ½À´Ï´Ù.

³ë±¤¹üÀ§ : ¾Æ·¡ÂüÁ¶

Controller/Integrator
EZ-Plus?30-memory controller/integrator controls the duration and intensity of exposure, the operation of motorized filters (if installed), and the selection of photocell, vacuum, and pressure times
Design & Construction
5 oversized drawers
48?(122 cm) yellow safe light
Attractive, compact design
Easily negotiates a 36?(91 cm) opening when disassembled (rewiring not required)
Gas lift-arm assisted glass frame opening
Heavy-duty all-steel cabinet
Overhead curtain assembly with posts and brackets
Electrical Requirements*
208/230v, 34/26 amps, 1 phase, 60 Hz
Light Source
6000/3000/1000-watt multi-spectrum metal-halide lamp
Light source is height adjustable
Proportional Temperature Control (PTC) reduces ambient heat during daily operation, reduces energy consumption, and improves control over lamp operating temperature
Removable reflector for easy lamp replacement
NuVac Instant Vacuum System
Assures highest resolution, intimate contact, and perfect registration in seconds
Automatically creates channels that act as bleeder strips to evacuate air swiftly and systematically
Heavy-duty maintenance-free vacuum pump for rapid drawdown
Patented (U.S. Patent No. 4,935,773)
Speeds drawdown and keeps materials registered
Size (WxD)***
NL43: 67?x 51?(170 x 130 cm)
NL52: 77?x 59?(196 x 150 cm)
Support
24-hour hotline
Training
Access to the M&R/NuArc Training Centers
Warranty
One-year limited warranty excluding glass and lamps

Automatic Curtain
Motor-driven curtain assembly
Electrical Requirements*
208/230v, 38/29 amps, 1 phase, 50 Hz
Filters
Manual Kokomo & Clearing Filters (MC292)
Motorized Kokomo & Clearing Filters (NL160)
Replacement Lamps
LY33
MH153
SmartONE?Computer Exposure System
Automatic lamp calibration
Computes compensation and new exposure times
Controls exposure (duration & intensity), photocell selection, automatic curtain (if installed), color sequencing, vacuum & pressure duration, compensation factors, and motorized filter (if installed)
Extremely user friendly
Keeps count of total exposures
Lamp monitoring system
LCD backlit screen
Lock code available to protect exposure settings
Menu-driven computer allows materials to be stored by brand name
Monitors lamp life
Selection of user-assigned name automatically sets all user-programmed parameters
Sequences exposures

Model Wattage Usable Area Drawer Size (WxD)
NL43 6000, 3000, & 1000 32" x 42"
(81 x 107 cm)
46" x 36"
(117 x 91 cm)
NL52 6000, 3000, & 1000 41" x 52"
(104 x 132 cm)
56" x 44"
(142 x 112 cm)

Size (WxD)*** Electrical Requirements* Shipping Weight
67" x 51"
(170 x 130 cm)
208/230v, 34/26 amps, 1 phase, 60 Hz
208/230v, 38/29 amps, 1 phase, 50 Hz**
1360 lbs
(617 kg)
77" x 59"
(196 x 150 cm)
208/230v, 34/26 amps, 1 phase, 60 Hz
208/230v, 38/29 amps, 1 phase, 50 Hz**
1550 lbs
(703 kg)


* If incoming voltage differs from the voltage(s) listed in this brochure, calculate amperage accordingly
** Optional
*** All models require minimum ceiling height of 8' (244 cm)
