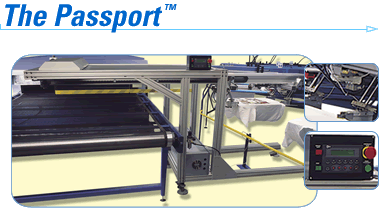

The phenomenal Passport is M&R’s patented automatic unloader for textiles. Automatic takeoff systems for graphics have long been a staple of the industry, but the search for a successful automatic takeoff system for textiles remained elusive—until now. Passport is the first automatic unloader to remove textile substrates quickly, carefully, and consistently.

In addition to revolutionizing the takeoff process, Passport dramatically reduces labor costs since it reduces by half the number of people needed to operate the press. Passport has four retracting arms to grasp the shirt (or other textile substrate) at four points and lift it straight up off the pallet, thereby minimizing the chance of design distortion. Next, Passport draws the shirt away from the pallet and deposits it on the adjacent dryer before returning to await the next press cycle. Not only does Passport minimize stretching and assure smooth takeoff by using twice as many ‘hands?as an operator, Passport doesn’t tire or lose concentration. The standard version of Passport works with all M&R automatic rotary textile presses and with most conveyor dryers, including M&R’s Radicure and Sprint Series dryers. Passport works with inline and side takeoffs, and supports a maximum pallet size (WxL) of 24?x 30?(61 x 76 cm). Passports also feature solid-state control panels and servo drives. And Passports are fast, achieving cycle rates up to 100 dozen per hour.

Like all M&R equipment, Passport is built with M&R’s unsurpassed commitment to quality, durability, and design excellence, and is backed by the best service and support in the industry. If you’re ready for the next step in textile automation, step up to a Passport. Only from M&R.

Control Center
Control panel offers easy navigation, with programming and prompts in plain language
Digital display
Solid-state design
Certification
Panel meets Underwriters Laboratories?(UL) standards and carries the UL label
Cycle Rates
Up to 100 dozen per hour
Design & Construction
Assembled and tested at M&R’s factory to assure turnkey operation
Servo-drive
Structural aluminum framing
Grippers
4 patented grippers on retracting arms (U.S. Patent No. 6,105,494)
Grippers minimize design distortion by lifting the substrate before transport to the dryer
Pallet Adapters
Most existing pallets adapt to Passport via easily attached (glue or screw) front and rear brackets (U.S. Patent No. 6,105,494)
Pallet Size (WxL)
Maximum: 24?x 30?(61 x 76 cm)
Minimum: 10?x 10?(25 x 25 cm)
Takeoff
Inline and side-unload capability
Service
24-hour hotline
Training
Access to M&R’s Training Center
Warranty
Two-year limited

Certification
CE Compliant (Built to specifications established by the European Committee for Standardization?

* If incoming voltage differs from the voltage(s) listed in this brochure, calculate amperage accordingly
* Other voltages are available: Contact M&R for details

Printworks
Franklin, Wisconsin
"The Passport unloader has greatly improved our shop efficiency and substantially reduced our labor costs. Our employees live it because it makes their job easier, and it has run flawlessly since the day we installed it. I would recommend it to anyone doing large production runs and trying to stay competitive in the screen printing industry."

Nutmeg Mills
Tampa, Florida
"Since day one, the M&R Passport auto-unloader has run flawlessly, and the R.O.I. is less than one year. We are so pleased with the Passport's performance, we are buying three more."

Four Seasons Screen Printing
Conway, South Carolina
"State-of-the-art machinery like the M & R Challenger Series II, the M & R 18-color Formula 5090, and the M & R Passport auto-unloader, help us to keep one step ahead of our competition. M & R is truly the leader in the Screen Graphics Industry."
