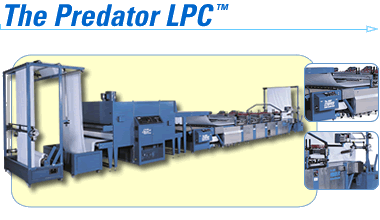

Predator LPC는 Nuarc의 독특하고 다목적인
대용량 롤투롤(roll-to-roll) 인쇄 및 건조(프린트및 큐어링:print-and-cure)시스템입니다.
이 시스템은 완제품이나 중간제품에 우수한 스크린프린팅이 가능하며 기계적 조정없이 단일프린팅이나
연속 프린팅을 할 수 있습니다.
Predator LPC는 소량프린팅이나 대용량프린팅을 처리할
수 있으며 기존의 스크린을 사용해 비용절감이
가능하고 직물의 낭비를 최소화할수 있고 우수한 프린트품질을 보장하며 로터리형 프레스보다 셋업시간을
단축할 수 있습니다.
Predator LPC는 기존의 로터리형 프린팅 시스템을 비용효율면이나
처리속도에 있어 이들을 훨씬
능가합니다.
롤투롤 공정(Roll-To-Roll Process): Predator LPC 는 칼라투칼라(color to color)프린팅
공정 및
일렬건조공정(Inline curing )중에 직물을 인쇄 벨트 위에 적당한 위치에 놓고 연속적으로 풀어
놓습니다.
프린트 및 건조공정이 끝나면 , 처리된 천은 스프레더가 일정한 폭을 잡아주는 Take-Up롤러에 감깁니다.
Predator LPC는 Nuarc만의독특한 Stripper Garment Removal System(쪼가리 천및
제품 분리장치)과 함께
연결 사용 가능 합니다.
선택사양인 Stripper는 싱크로나이즈드 take-off belts를 제공해서 제품을 인쇄 벨트에서 들어내어 제거 컨베어에
옮기는 일을 합니다.
Predator LPC는 고속의 Sprint III modular 개스 건조기(gas dryer) 와 함께 사용할 수 있습니다.
Sprint III modular 개스 건조기(gas dryer)의 트리플 벨트 시스템은 건조공정중에 머무르는
시간을 길게함으로써 건조능력을 향상시켜줍니다.
All-Over Printing
Cut piece and finished goods
Belt Operation
Direction of belt is reversible
Kevlar reinforced belt for smooth operation and tracking
Prints cut piece or finished goods
Prints roll-to-roll
Wide belt allows simultaneous printing of multiple pieces
Belt Washer
Stainless steel
Certification
Panel listed by Underwriter's Laboratories?(UL)
Color Capacity
4-10 colors
Control Center
Digital display
Digital microprocessor with self-diagnostics
Independent test print/print start/print finish setting automatically
activates and stops print heads in proper sequence
Index speed adjustable from control panel
Management Production Software
Multiple stroke capability
Production speed monitor for more accurate job costing
Programming & prompts in plain language
Design & Construction
Rigid steel and aluminum
Fabric Handling
Adjustable fabric spreader maintains proper fabric width
Automatic, synchronized fabric take-up
Filtration
Water filtration system
Index System
Single or double index capability
Sophisticated servo-driven index system insures accurate, smooth travel
Ink Dip System
Retrieval system keeps ink in print area (Patent #5,649,479)
Master Frame
Completely adjustable master frame system
Peel System
Fully adjustable true peel system accurately sets screen peel rate for
consistently sharp prints and minimal ink buildup
Print Areas Available
38?x 66?(97 x 168 cm), 38?x 78?(97 x 198 cm), and 38?x 90?(97 x 229 cm)
Print Heads
4-point off-contact adjustment on all print heads
AC variable speed motors are brushless and maintenance-free
Independent print/flood speed controls on each head
Independent print button and reset button on each head
Pneumatic high screen lift on print heads
Registration
Front and rear micro-registration adjustments with visual guides
Laser light 4-point garment placement system
Screen Clamps
Pneumatic screen clamps facilitate rapid screen loading and deliver unmatched
stability on a wide variety of screens
Screen Holders
Adjustable screen holders accommodate a wide variety of screen sizes
Service
24-hour hotline
Squeegees/Floodbars
Calibrated independent and adjustable pressure settings
Front or rear stop position allows operator to leave screen flooded or
unflooded (great for water-based inks)
Pressure and angle adjustments independently set for superior print quality
Pneumatic squeegee and floodbar locks
Stroke Length
Front and rear stroke length adjustable for versatility and speed
Towel Mode
Allows installation of 2 squeegees on each head to print towels efficiently
Training
Access to Nuarc뭩 Training Center
Warranty
Two-year limited
Control Center
Modem with cable and module
Glue Applicator
Automatic
Internal Shirt Tack Applicator System
Sprint III or Sprint 2000 Modular Gas Dryer
Squeegee/Floodbar
Pressure gauge for squeegee on each print head
Stripper Garment Removal System
For cut piece and finished goods
| Model |
Belt Width |
Maximum Image |
Maximum OD Frame Size |
Maximum Fabric Width |
Repeat Index
(cut piece) |
| LPC 60 |
76?br> (1.93 m) |
66?X 38?br> (1.68 X .97 m) |
49?X 84?X 2.25?br> (124 X
213 X 5.7 cm) |
64?br> (1.63 m) |
50.5?br> (1.28 m) |
| LPC 72 |
88?br> (2.24 m) |
78?X 38?br> (1.98 X .97 m) |
49?X 96?X 2.25?br> (124 X
244 X 5.7 cm) |
76?br> (1.93 m) |
50.5?br> (1.28 m) |
| LPC 84 |
100?br> (2.54 m) |
90?X 38?br> (2.28 X .97 m) |
49?X 108?X 2.25?br> (124
X 274 X 5.7 cm) |
88?br> (2.24 m) |
50.5?br> (1.28 m) |
| Model |
Repeat Index
(roll-to-roll) |
Air @ 100 PSI |
Electrical Requirements*(roll-to-roll) |
Electrical Requirements*
(Unwind/Rewind) |
| LPC 60 |
25.25?br> (64 cm) |
7-18 scfm*** |
230v, 3 phase, 48-65 amps** |
115v, 3 amps |
| LPC 72 |
25.25?br> (64 cm) |
7-18 scfm*** |
230v, 3 phase, 48-65 amps** |
115v, 3 amps |
| LPC 84 |
25.25?br> (64 cm) |
7-18 scfm*** |
230v, 3 phase, 48-65 amps** |
115v, 3 amps |
* If incoming voltage differs from the voltage(s) listed
in this brochure, calculate amperage accordingly
** 4-color = 48 amps, 6-color = 56 amps, 8-color = 59 amps, 10-color =
65 amps
*** 4-color = 7 scfm, 6-color = 11 scfm, 8-color = 14 scfm, 10-color =
18 scfm
Water Supply and drain are required.
|
