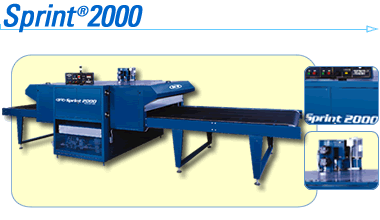

Sprint 2000 Modular Gas Dryer는 텍스타일용 차세대 기술이 적용된 혁신적인 모듈형 가스 건조기입니다.

Sprint 2000 은 대량생산용에 적합한 성능과 파워를 갖추고 있읍니다.

LP나 천연개스를 사용하고 3개의 블로워(송풍기)가 달려 일정한 온도유지및 강력한 건조능력을 보여주는
고성능 버너가 장착되어 있습니다.
고출력 열 순환용 블로워는 가열된 에어를 콘베어밸트를 따라 보내주며 파워블로워는 버너에 별도로 연소용 에어를 공급합니다.
또한 배기용 블로워는 최대 2200 SCFM의 공기량을 배출 시킵니다.

이러한 구조로 인해 신속하고 효율적인 건조가 가능하며 효율적인 강제 열순환시스템은 히트챔버의
온도를 목표온도에 쉽게 도달하게합니다.
2중단열벽및 고성능 단열층은 열효율증대및 외부표면온도의 상승을 막아줍니다.

Sprint 2000 의 비저블 타워라이트는 사용자의 온도설정내에서 온도가 진행되고 있슴을
쉽게 확인 가능하게 해 줍니다.

온도표시는 외부에서 인식가능하게 비저블로 하거나 소리알람기능을 사용할수 있습니다.

외부의 알람장치는 장비내의 온도 변화를 알려주며, 시스템에 과부하가 생길시 자동으로 정지합니다.

퍼지로직 마이크로프로세서로 제어되는 컨트롤센터가 장착되어 있고 컨트롤 판넬은
회전하게끔 되어 있어 드라이어의 조작에도 편리합니다.

Sprint 2000 은 편의성과 안전성을 위해서 가열이 멈춘 후에도 벨트와 블로워가 설정된 냉각 온도에 도달할 때까지 시스템을 작동 시킵니다.

Sprint 2000은 기본적으로 다섯 개의 작업영역을 갖추고 있으며 작업폭에 대해서는 세가지 모델이 있습니다. 122 cm까지 콘베이어를 확장할수 있으며, 61 cm 까지 건조영역(히트챔버)을 확장할 수 있습니다.
순환용 블로워위에 장착하는 선택사양인 AC frequency-control 속도가변형 모터는 특별한 작업시 공기의 흐름속도를 조절할수 있습니다.




Air Handling
Airflow is enhanced to accelerate drying/curing
Exhaust blower: approximately 1200 SCFM
High-volume circulation blower recirculates up to 80% of heated air
Stainless steel filter slides out for easy cleaning
Three separate dedicated blowers (combustion, circulation, & exhaust)
Certification
AGA?& CGA?approved (design certified by the American and Canadian Gas Associations to meet or exceed national safety standards for design and performance)
Gas controls meet standards set by Factory Mutual?and by the National Fire Protection Association?(NFPA)
Panel meets Underwriters Laboratories?(UL) standards and carries the UL label
Control Center
Air-cooled cabinet assures long life for electrical components
Control panel rotates for easy access and visibility
Fuzzy-Logic temperature controller program learns to modulate dryer process temperature more accurately as the dryer runs, ensuring the ultimate in curing consistency
Process temperature and set temperature are displayed and controlled digitally
Solid-state design
System-Saver allows blowers and belt to continue to run in cooldown mode after heat source shutdown, then shut off automatically upon reaching the cooldown target temperature
Temperature monitor issues visual and audible alarms for readings outside user-specified parameters
Conveyor Belt Width
38" (97 cm)
Conveyor System
Conveyor belt is made of heat-resistant, Teflon?coated fiberglass
Driven by a reliable, heavy-duty, variable-speed DC motor
Large diameter crowned aluminum conveyor rollers promote positive belt tracking
Solid-state belt speed controller with digital belt speed readout makes it easy to duplicate speed settings
Standard infeed/outfeed lengths: 4' (122 cm)
Design & Construction
Adjustable entry/exit openings
Assembled and tested at M&R's factory to assure turnkey operation
Bearings are designed for high speeds and high temperatures
Constructed of rigid steel and premium components
Designed for maximum thermal efficiency
Low-profile design
Modular design simplifies future expansion
Specialized joining fasteners simplify the connection of additional heat chamber units
Heat Chamber
Burners are available in a choice of liquid propane (LP) or natural gas (NG)
Direct-fired burner is maximum-rated at 200,000 BTU
Double-wall construction
Galvanized steel interior
Heavy-duty thermal insulation
Interior air distribution system assures uniformity and consistency of temperature
Modular gas train simplifies maintenance
Pressurized vector air knives provide uniform temperatures throughout the drying chamber
Service
24-hour hotline
Training
Access to M&R's Training Center
Warranty
Two-year limited

Air Handling
AC frequency-controlled variable-speed motor on circulation blower
Certification
CE Compliant (Built to specifications established by the European Committee for Standardization?
Conveyor Belt Width
Custom sizes available: Quoted upon request
Conveyor System
Conveyor extension sections are available in 4' (122 cm) increments
High-speed conveyor drive system for versatility when used with graphics and industrial applications
Split-belt model with independent drives features reversible direction and variable speed뾞vailable on models with belt widths of 60" (152 cm) or more
Cooling Fan
Cools garments, making them easier to handle as they exit the heat chamber
Mounts over outfeed
Electric
Available in single phase
Other electrical configurations are available
Heat Chamber
Additional 2?(61 cm) expansion modules available
Infrared Radiant Heat Section
Independent 2?(61 cm) module preheats inks for faster throughput



Model Belt
Width		 Heat Chamber
Lengths		 Expansion
Heat
Modules		 Standard
Infeed
Length		 Standard
Outfeed
Length		 Shipping
Weight****
2000-48 48"
(122 cm)		 12' to 20'
(244-610 cm)
or more		 2'
(61 cm)		 8'
(244 cm)		 8'
(244 cm)		 3700 lbs
(1678 kg)
2000-60 60"
(152 cm)		 12' to 20'
(244-610 cm)
or more		 2'
(61 cm)		 8'
(244 cm)		 8'
(244 cm)		 4100 lbs
(1860 kg)
2000-72 72"
(183 cm)		 12' to 20'
(244-610 cm)
or more		 2'
(61 cm)		 8'
(244 cm)		 8'
(244 cm)		 4800 lbs
(2177 kg)

Electrical
Requirements*		 Exhaust Blower
System**		 Gas Input
Size		 Nominal
Gas Input
Pressure		 Burner Input
Maximum BTU***
 Optional 2' (61 cm)
Radiant Section
208/230v
3 phase
18/16 amps
60Hz		 12" (30 cm) Dia.
1800 scfm @ 1/4" (6 mm) s.p.		 1"
(2.54 cm)		 5" w.c.
(.93 mm Hg)		 300,000 208/230v
3 phase
15/17 amps
60Hz
208/230v
3 phase
22/20 amps
60Hz		 12" (30 cm) Dia.
1800 scfm @ 1/4" (6 mm) s.p.		 1"
(2.54 cm)		 5" w.c.
(.93 mm Hg)		 300,000 208/230v
3 phase
19/21 amps
60Hz
208/230v
3 phase
24/22 amps
60Hz		 12" (30 cm) Dia.
1800 scfm @ 1/4" (6 mm) s.p.		 1"
(2.54 cm)		 5" w.c.
(.93 mm Hg)		 300,000 208/230v
3 phase
21/23 amps
60Hz


*If incoming voltage differs from the voltage(s) listed in this brochure, calculate amperage accordingly
** Measured at the Exhaust Discharge Port
*** Nominal usage varies, but is considerably lower than the stated maximum
**** Weight applies to models with an 8' (2.44 m) heat/expansion chamber
