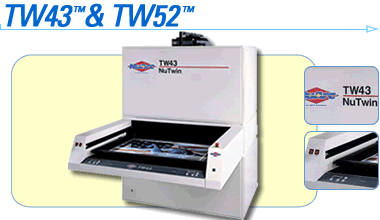

Nuarc의 TW43/TW52트윈 베큠프레임 노광시스템은 타의
추종을 불허할정도의 빠른 노광속도와
고해상도의 노광을 가능케하는 리소그래피용 노광시스템입니다.
NuArc의 시스템상부에 장착된 시스템631 메탈할라이드 고압수은등은 6000,3000,1000와트를 사용할수
있으며 NuArc의 새로개발된 비례온도콘트롤시스템( Proportional Temperature Control-PTC)은
획기적으로 에너지 소모 및 열발산을 감소시켜주며 적당한 램프온도 유지.고효율의 램프출력등을 가능하게
해줍니다.
EZ-Plus 30채널의 적산광량콘트롤러는 노광강도및 시간,
필터의 작동(설치되어 있을 경우)
포토셀의 선택등을 제어해 원하는 노광을 정확하게 제어하게 해줍니다.
듀얼 베큠프레임을 사용하면 작업자가 한쪽면을 노광하는동안 다른사이즈의 다른면의 노광준비를 할수있어
Plating과 Proofing 을 쉽게 변경할수 있습니다.
NuArc의 특허인 인스턴트 베큠시스템은 프레임당 2개의 펌프를 사용하는데 하나의 펌프는
진공을 위한 공기흡입용 주펌프로 사용되고 다른하나는 완벽한 접착을 위한 추가압력용으로
사용됩니다.
하나의버튼으로 볼베어링으로 부드럽게 작동되는 2개의 프레임을 왕복운동시킬수있습니다.
Two Vacuum frames under one overhead light source
System 631 multi-spectrum tri-level light source
A smooth, quiet vacuum drawer assembly for each vacuum frame
Patented nuVac system, the fastest most positive system in the industry
2 - EZ+ controllers, each with 30 channels of memory, controlling all
functions of exposure, vacuum duration, lamp intensity, and filters
Optional kokomo & clearing filter for proofing applications
Controller/Integrator
Dual EZ-Plus?controller/integrators뾬ne per vacuum frame
EZ-Plus?30-memory controller/integrator controls vacuum & pressure
times, the duration and intensity of exposure, the operation of motorized
filters (if installed), and the selection of photocell
Design & Construction
Ball bearings provide smooth, consistent vacuum frame movement
Chain-driven movement is positive and trouble-free
Gas lift-arm assisted vacuum frame opening
Heavy-duty all-steel cabinet
Negotiates a 36?(91 cm) opening when disassembled (rewiring not required)
One-button frame-shuttle control
Electrical Requirements*
208/230v, 1 phase, 37.5/29.0 amps, 60 Hz
Light Source
Height adjustable
Intensity adjusts to 6000, 3000, & 1000 watts
Multi-spectrum metal-halide lamp
Proportional Temperature Control (PTC) reduces ambient heat during daily
operation, reduces energy consumption, and improves control over lamp
operating temperature
Track-mounted housing and removable reflector make lamp replacement easy
NuVac?Instant Vacuum System
Assures highest resolution, intimate contact, and perfect registration
in seconds
Automatically creates channels that act as bleeder strips to evacuate
air swiftly and systematically
Heavy-duty maintenance-free vacuum/pressure pumps (two per frame) for
rapid drawdown
Patented (U.S. Patent No. 4,935,773)
Size (HxWxD)***
TW43: 80?x 63?x 93?(202 x 160 x 236 cm)
TW52: 80?x 73?x 110?(202 x 185 x 279 cm)
suitable for fine line PCBs
Support
24-hour hotline
Training
Access to the M&R/NuArc Training Center
Warranty
One-year limited warranty excluding glass and lamps
Electrical Requirements*
208/230v, 1 phase, 45.0/30.2 amps, 50 Hz
Filters
Automatically move into place only when called for by the controller
Motorized Kokomo & Clearing Filters (ME29)
Permit plating or proofing operations in either frame at any time
Replacement Lamps
LY33
MH153
| Model |
Wattage |
Usable Area |
Size
(HxWxD)*** |
| TW43 |
6000, 3000, & 1000 |
32" x 42"
(81 x 107 cm) |
80" x 63" x 93"
(202 x 160 x 236 cm) |
| TW52 |
6000, 3000, & 1000 |
41" x 52"
(104 x 132 cm) |
80" x 73" x 110"
(202 x 185 x 279 cm) |
| Electrical Requirements* |
Shipping
Weight |
208/230v, 1 phase, 37.5/29.0 amps,
60 Hz
208/230v, 1 phase, 45.0/30.2 amps, 50 Hz** |
2300 lbs
(1043 kg) |
208/230v, 1 phase, 37.5/29.0 amps,
60 Hz
208/230v, 1 phase, 45.0/30.2 amps, 50 Hz** |
2600 lbs
(1179 kg) |
* If incoming voltage differs from the voltage(s) listed
in this brochure, calculate amperage accordingly
** Optional
*** Maximum extension: 100?(254 cm). Minimum clearance
required above lamp head: 8?(21 cm)
|
