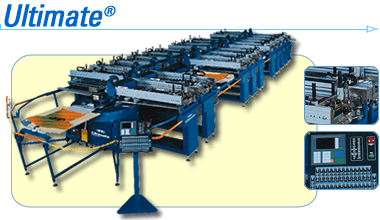

Ultimate는 Nuarc의 고속, 다목적용 타원형 인쇄기(press)입니다.
Ultimate는 현사용자들의 요구사항 뿐만 아니라 차세대 기능까지 포함되어 있습니다.
Ultimate는 동시에 최대 26 색상을 프린트 할 수 있으며
Ultimate의 타원형 디자인 및 모듈개념의 구성은 작업의 유연성과 공간의 효율적 사용을 가능하게 해 줍니다.
프린트 가능사이즈는모델별 최대 66 x 91 cm, 106.7 x 91.4 cm이며 직물이나 티셔츠 프린트시에 우수한 성능을
발휘합니다.
Ultimate는 신속한 셋업및 탁월한 생산속도,선명하고 명확한 프린트 품질을 제공하며
servo-drive 인덱싱 시스템과 AC 주파수 제어형 일렉트릭 드라이브 프린트헤드가 장착되어
최고의 스피드와 일관성 있는 작업신뢰도를 제공합니다.
Ultimate는 기본을 3포인트 팔렛 레벨링 시스템이 장착된 유일한 타원형 인쇄기(press)입니다.
Ultimate는 또한 생산속도 모니터가 기본으로 장착되어 테스트프린트 진행중에 각각의 프린트헤드를
on-off 할수 있게 하며 싱글, 듀얼 인덱싱,일정한 레지스트레이션을 가능케하는
Nuarc 특허기술인 전-후 이동 팔렛 로케이터등 보다 정확한 작업상황 분석이 가능합니다.
완전제어가 가능한 싱크로나이즈드 필(peel)시스템은 정확한 스크린 필(Peel) 레이트를 설정이 가능해
항상 선명한 프린트 품질을 제공하며 공기압으로 작동하는 스크린 클램프는 신속한 스크린 로딩과
다양한 종류의 스크린을 안정성 있게 잡아 줍니다.
또한 Nuarc특허의 Dip Retrieval 시스템은 프린트할 부분에 정확하게 잉크를 모아줍니다.
옵션품목으로는 공기압으로 작동되는 스퀴지/플러드바 잠금장치(lock)과 스퀴지 압력 레귤레이터 등이 있습니다.
Super Ultimate모델은 Nuarc특허인 All-Over Printing 시스템 기능이 포함됩니다..
All-Over Printing (Super Ultimate)
Provides complete print coverage of T-shirts (U.S. Patent No. 5,199,353)
Carousel/Indexer
Clockwise or counterclockwise rotation
Certification
Panel meets Underwriter's Laboratories?(UL) standards and carries the
UL label
Color Capacity (Stations/Colors)
Standard Ultimate: 14/12, 18/16, 22/18, 26/22, & 30/26
Super Ultimate: 14/12, 18/16, & 22/18
Control Center
Control panel offers easy navigation with programming and prompts in plain
language
Digital keypad with alphanumeric display
Digital microprocessor with self-diagnostics
Independent print start/print finish setting automatically activates and
stops print heads at the beginning and end of production runs for operator
convenience
Jog left/jog right controls
Production speed monitor for more accurate job costing
Single/Double print stroke capability
Test print setting turns individual print heads on/off during test print
cycle
Versatile pedestal-mounted control panel can be placed where needed
Design & Construction
Constructed of rigid steel & aluminum and premium components
Print heads and pallet arms provide the stability necessary for exceptional
print quality
Index System (Servo Drive)
Allows quick adjustment of indexing parameters tailored to various pallet
sizes
Offers single and double-index capability
Sophisticated servo-drive system combines high press speeds with exceptional
smoothness, consistency, and longevity
Ink Dip System
Retrieval system keeps ink in print area (U.S. Patent No. 5,649,479)
Master Frame
Completely adjustable master frame system
Maximum Image Area
24?x 36?(61 x 91 cm): Standard Ultimate single index area
42?x 36?(106.7 x 91.4 cm): Super Ultimate single index area
Double-index print area: Contact Nuarc for dimensions
Pallet System
Front and rear locators ensure consistent registration (U.S. Patent Nos.
4,735,139 and 4,909,146)
Three-point pallet leveling system allows easy adjustment
Tool-free quick release locking system for rapid adjustment, installation,
and removal
Pallets
Solid-aluminum, low-profile, rubber-coated pallets
Peel System
AC heads with fully adjustable synchronized screen peel system for consistently
sharp prints and minimal ink buildup
Print Carriage
True close-tolerance linear bearing carriage system for uniform ink deposit
Print Heads
AC variable-frequency drive motors are brushless, maintenance-free, and
offer the ultimate in print control
Four-point off-contact adjustment on all print heads
High-Lift mode on front screen holder makes setup fast and mid-run screen
changes easy
Independent print button on each head facilitates test printing
Independent print/flood speed controls on each head simplify press setup
and job proofing
Independent reset button on each head enables freewheeling of carousel
during setup
Registration
Enhanced front micro-registration adjustments with visual guides
Locking rear micro-registration provides additional control
Screen Clamps & Holders
Adjustable rear screen holders accommodate a wide range of screen sizes
Clamping system holds roller frames without clamp adapters
Compatible with numerous registration systems, including Nuarc뭩 Tri-Loc?and
Newman Pin-Lock?
Pneumatic screen clamps facilitate rapid screen loading and deliver excellent
stability on a wide variety of screens
Squeegee/Floodbar
Angle and calibrated pressure adjustments are independently set for superior
print quality
Front or rear print carriage stop position allows operator to leave screen
clear or flooded (great for water-based inks)
Independent squeegee & floodbar speed adjustments
Park position allows easier squeegee/floodbar installation and removal
Stroke Length
Calibrated front and rear stroke length with tool-free adjustment maximize
print speed and efficiency, and reduce the working of ink
Front stroke length adjustment
Service
24-hour hotline
Training
Access to Nuarc뭩 Training Center
Warranty
Two-year limited
All-Over Printing (Standard Ultimate)
Provides complete print coverage of T-shirts (U.S. Patent No. 5,199,353)
Certification
CE Compliant (Built to specifications established by the European Committee
for Standardization?
Control Center
MPR (Management Production Reporting) Software System?/ul> Flash Curing
Nuarc offers a full range of flash cure units
Foot Pedal Control
Allows indexing of the press using a foot pedal instead of the control
panel switch
Optic Shirt Detector
Minimizes misprints, facilitates operator training, and allows increased
production speed (U.S. Patent No. 5,383,400)
Pallets
Nuarc offers a wide range of sizes and styles
Pivoting flip pallets make it possible to print both sides of a T-shirts
without removing the shirt from the press
Skip Print
Allows operator to skip empty pallets during All-Over Printing
Squeegee/Floodbar
Pneumatic squeegee/floodbar locks with tool-free angle adjustment
Squeegee air regulator with a pressure gauge on each print head delivers
exacting pressure control
Tri-Loc?Rapid Registration System
Dramatically speeds setup
Model **
(Stations-Colors) |
Max Image Standard |
Max OD Frame Size |
Max Image All-Over Print Kit*** |
Screen Size OD All-Over Print
Kit*** |
Ultimate
14-10 |
24?X 36" (61 X 91 cm) |
33?X 50?X 2" (84 X 127
X 5 cm) |
42?X 36" (107 X 91 cm) |
50?X 50?X 2" (127 X 127
X 5 cm) |
Ultimate
18-14 |
24?X 36" (61 X 91 cm) |
33?X 50?X 2" (84 X 127
X 5 cm) |
42?X 36" (107 X 91 cm) |
50?X 50?X 2" (127 X 127
X 5 cm) |
Ultimate
22-18 |
24?X 36" (61 X 91 cm) |
33?X 50?X 2" (84 X 127
X 5 cm) |
42?X 36" (107 X 91 cm) |
50?X 50?X 2" (127 X 127
X 5 cm) |
Ultimate
26-22 |
24?X 36" (61 X 91 cm) |
33?X 50?X 2" (84 X 127
X 5 cm) |
42?X 36" (107 X 91 cm) |
50?X 50?X 2" (127 X 127
X 5 cm) |
Ultimate
30-26 |
24?X 36" (61 X 91 cm) |
33?X 50?X 2" (84 X 127
X 5 cm) |
42?X 36" (107 X 91 cm) |
50?X 50?X 2" (127 X 127
X 5 cm) |
Super Ultimate
14-10 |
42?X 36" (107 X 91 cm) |
50?X 50?X 2" (127 X 127
X 5 cm) |
NA |
NA |
Super Ultimate
18-14 |
42?X 36" (107 X 91 cm) |
50?X 50?X 2" (127 X 127
X 5 cm) |
NA |
NA |
Super Ultimate
22-18 |
42?X 36" (107 X 91 cm) |
50?X 50?X 2" (127 X 127
X 5 cm) |
NA |
NA |
Model **
(Stations-Colors) |
Overall Width |
Overall Length |
Air@ 100psi |
Electrical Requirements* |
Weight |
Utlimate
14-10 |
13.2'(4.01 m) |
30'(9.14 m) |
22 scfm |
230v, 3 phase, 48 amps |
8000 lbs
(3629 kg) |
Utlimate
18-14 |
13.2'(4.01 m) |
36'(10.97 m) |
30 scfm |
230v, 3 phase, 59 amps |
10000 lbs
(4536 kg) |
Utlimate
22-18 |
13.2'(4.01 m) |
42'(12.8 m) |
38 scfm |
230v, 3 phase, 69 amps |
12000 lbs
(5443 kg) |
Utlimate
26-22 |
13.2'(4.01 m) |
48'(14.63 m) |
46 scfm |
230v, 3 phase, 80 amps |
14000 lbs
(6351 kg) |
Utlimate
30-26 |
13.2'(4.01 m) |
54'(16.46 m) |
54 scfm |
230v, 3 phase, 90 amps |
16000 lbs
(7258 kg) |
Super Ultimate
14-10 |
13.2'(4.01 m) |
39'
(11.99 m) |
22 scfm |
|
|
