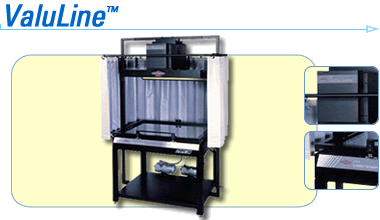

ValuLine은 Nuarc의
Over-head 노광시스템입니다.
시스템 631용 메탈할라이드 고압 수은등을 사용해 강력하고 신속한 노광을 가능하게 해줍니다.
NuArc의 새로개발된 비례온도콘트롤시스템( Proportional Temperature Control-PTC)은
획기적으로 에너지 소모 및 열발산을 감소시켜주며 적당한 램프온도 유지.고효율의 램프출력등을
가능하게 해줍니다.
EZ-Plus 30채널의 적산광량콘트롤러는 노광강도및 시간,진공시간,필터의
작동(설치되어 있을 경우)
포토셀의 선택등을 제어해 원하는 노광을 정확하게 제어하게 해줍니다.
Valuline은 다른베큠시스템이나 NuArc의 특허인 인스턴트 베큠시스템- 프레임당 2개의 펌프를
사용하는데 하나의 펌프는진공을 위한 공기흡입용 주펌프로 사용되고
다른하나는 완벽한 접착을 위한 추가압력용으로 사용됩니다-을 사용할수 있습니다.
옵션으로는 오토매틱 커튼시스템,오토매틱 디퓨전,오토매틱 kOkOMO /클리어링 필터와 5칸
드로워 저장 캐비닛 등의 선택이 가능합니다.
선택할수 있습니다.
오버헤드커튼 어셈블리, 스토리지선반, 엘로우 인스펙트라이트 등이 부착되어 있습니다.
노광 범위 :69 x 81 cm ~ 124 x 170 cm
Controller/Integrator
EZ-Plus?30-memory controller/integrator controls the duration and intensity
of exposure, the operation of motorized filters (if installed), and the
selection of photocell & vacuum functions
Design & Construction
48?(122 cm) yellow safe light
Gas lift-arm assisted vacuum frame opening
Heavy-duty all-steel cabinet
Overhead curtain assembly with posts and brackets
Storage shelf
Electrical Requirements*
208/230v, 1 phase, 34/27 amps, 60Hz Hz
Light Source
Height adjustable
Intensity adjusts to 6000, 3000, & 1000 watts
Multi-spectrum metal-halide lamp
Proportional Temperature Control (PTC) reduces ambient heat during daily
operation, reduces energy consumption, and improves control over lamp
operating temperature
Removable reflector for easy lamp replacement
Vacuum System
Heavy-duty maintenance-free vacuum pump for rapid drawdown
Support
24-hour hotline
Training
Access to the M&R/NuArc Training Centers
Warranty
One-year limited warranty excluding glass and lamps
Electrical Requirements*
208/230v, 1 phase, 42/31 amps, 50Hz Hz
Filters
Manual Kokomo and Clearing Filters (MC292)
Motorized Kokomo and Clearing Filters (NL160)
NuVac?Instant Vacuum System
Assures highest resolution, intimate contact, and perfect registration
in seconds
Automatically creates channels that act as bleeder strips to evacuate
air swiftly and systematically
Patented (U.S. Patent No. 4,935,773)
Replacement Lamps
LY33
MH153
Storage Cabinets
Drawers fit on storage shelf (requires relocation of 24?x 29?(61 x 74
cm) power unit)
SC40-5 has inside drawer dimensions of 26?x 37?(66 x 94 cm)
SC52-5 has inside drawer dimensions of 38?x 50?(97 x 127 cm)
| Models |
Vacuum |
Usable Area |
Size
(HxWxD) |
Shipping
Weight |
| PK12 |
Standard Vacuum |
28" x 32"
(71 x 81 cm) |
92" x 49" x 40"
(234 x 124 x 102 cm) |
900 lbs
(408 kg) |
| PK13 |
NuVac System |
27 " x 32"
(69 x 81 cm) |
92" x 49" x 40"
(234 x 124 x 102 cm) |
900 lbs
(408 kg) |
| PK2 |
Standard Vacuum |
33.0" x 41.5"
(84 x 105 cm) |
92" x 59" x 48"
(234 x 150 x 122 cm) |
1100 lbs (499 kg)
1330 lbs (604 kg)** |
| PK4 |
NuVac System |
32" x 42"
(81 x 107 cm) |
92" x 59" x 48"
(234 x 150 x 122 cm) |
1100 lbs (499 kg)
1330 lbs (604 kg)** |
| PK7 |
Standard Vacuum |
43" x 52"
(109 x 132 cm) |
96" x 69" x 56"
(234 x 175 x 142 cm) |
1300 lbs (590 kg)
1650 lbs (749 kg)** |
| PK9 |
NuVac System |
41" x 52"
(104 x 132 cm) |
96" x 69" x 56"
(234 x 175 x 142 cm) |
1300 lbs (590 kg)
1650 lbs (749 kg)** |
| PK15 |
NuVac System |
49" x 67"
(124 x 170 cm) |
96" x 80" x 65"
(234 x 203 x 165 cm) |
1500 lbs
(681 kg) |
* If incoming voltage differs from the voltage(s) listed
in this brochure, calculate amperage accordingly
** With storage cabinet
|
